Welcome to Misubishi Elevator Design Assistant


We have 3 types of elevator that you can design for your place

HOME ELEVATOR

For private residences with maximum use of available space (suitable for a building with travel height equals to or less than 13 m. approximately 5-storey-tall or less)

NEXIEZ-MR (equipped with machine room)

For high rise buildings, medium rise buildings, hotels, commercial buildings, residential buildings, stations, hospitals, private residences

NEXIEZ-MRL (machine room less)

For high rise buildings, medium rise buildings, hotels, commercial buildings, residential buildings, stations, hospitals, private residences with a machine-room-less technology as the space saving solution

(suitable for a building with travel height equals to or less than 80 m. approximately 26-storey-tall or less)

How to use our design assistant

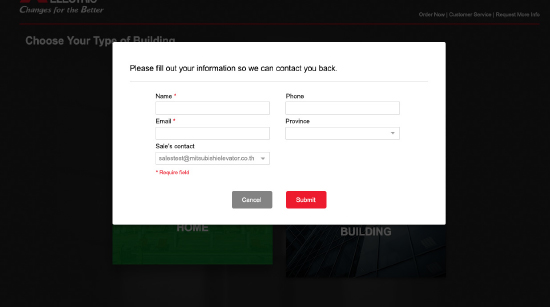

Step 1 Please fill out your information so we can contact you

How to use our design assistant

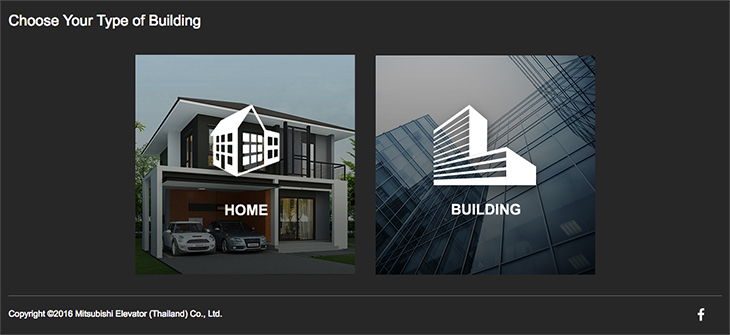

Step 2 Please select the building type

How to use our design assistant

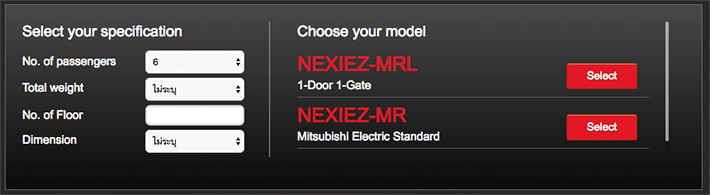

Step 3  Please select your specifications

Select your specifications from the dropdown list

- Number of passengers - Total weight (capacity - kg)
- No. of stop floors (how many floor stops) - Hoistway dimension

How to use our design assistant

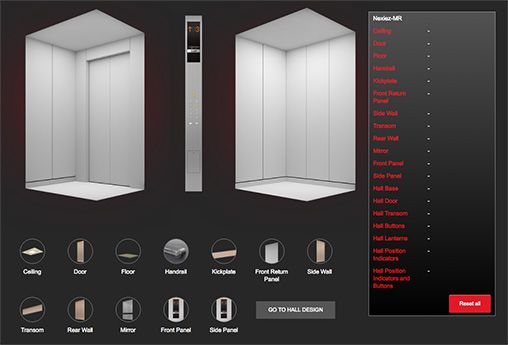

Step 4 Select applications for your design!

Click “Go to hall design” to design your elevator door and control panel (external)
The item selected will blink for 3 seconds to show you the exact location of the item on the display

Click “Preview” to view and rotate your design in 360 degree

You can delete selected selections or begin new design again anytime


How to use our design assistant

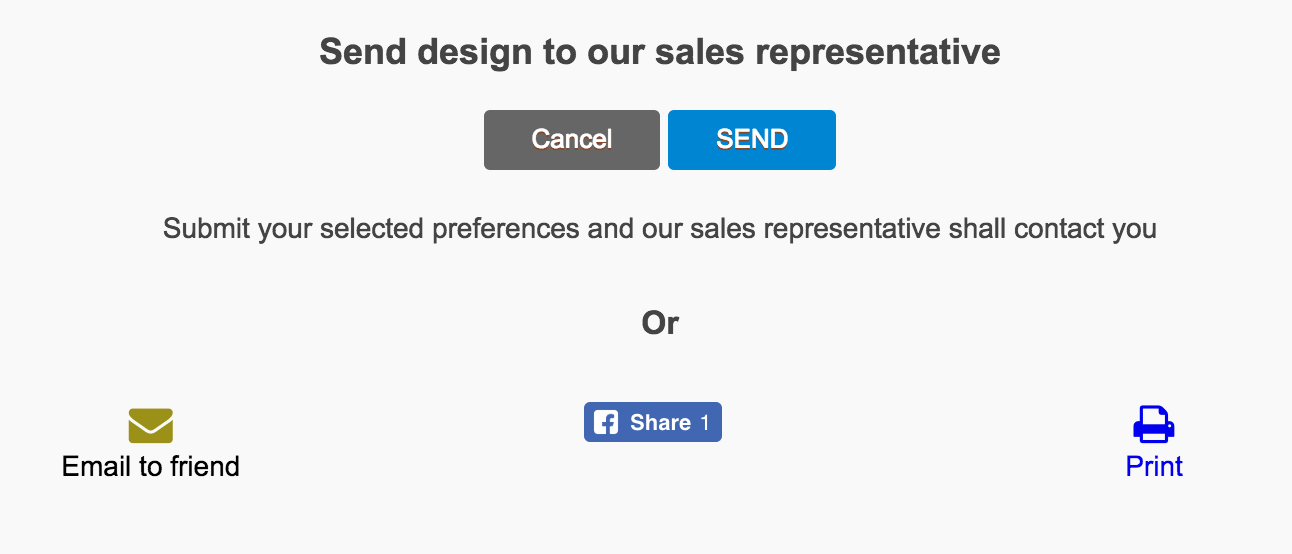

Step 5 After completed your design, click "Send" to transfer information to our sales representative

Sharing Smart Choice on your Facebook and printing out your finished design are also available.
